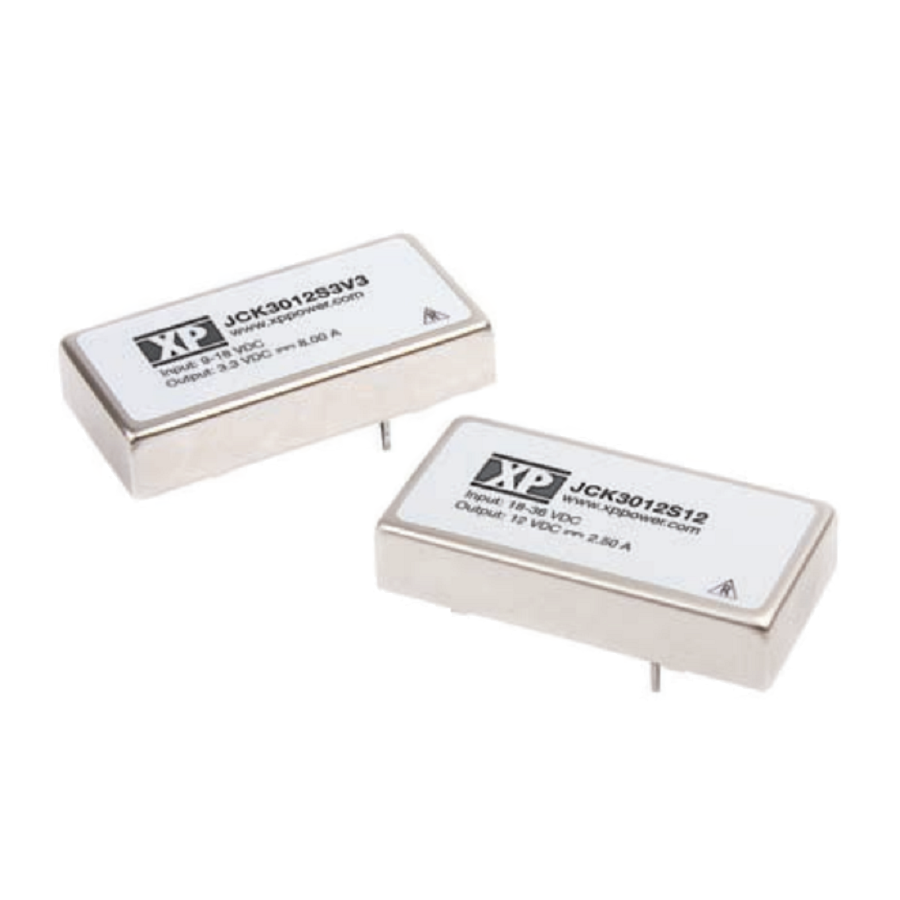

JCK3012S12
Manufacturer:
XP Power
Mfr.Part #:
JCK3012S12
Datasheet:
Description:
Board Mount Modules DIP-6 Module Through Hole Current - Output 1:2.5 A Voltage - Output 1:12 V 91 %
| Parameter | Value |
|---|---|
| Length | 50.8 mm |
| Width | 25.4 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 30 W |
| Height | 10.16 mm |
| Packaging | Tube |
| Depth | 50.8 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Features | OCP, OVP, SCP, UVLO |
| Min Input Voltage | 9 V |
| Output Current | 2.5 A |
| Output Voltage | 12 V |
| Max Power Dissipation | 30 W |
| Power Dissipation | 30 W |
| Max Output Current | 2.5 A |
| Max Input Voltage | 18 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1.6 kV |
| Output Power | 30 W |
| Current - Output 1 | 2.5 A |
| Efficiency | 91 % |
| Voltage - Output 1 | 12 V |
| Max Input Voltage (DC) | 18 V |
| Nominal Output Voltage | 12 V |
| Max Output Power | 30 W |
| Min Input Voltage (DC) | 9 V |
Stock: 7
Distributors
pcbx
pcbxUnit Price$35.10768
Ext.Price$35.10768
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $35.10768 | $35.10768 |
| 10 | $32.99857 | $329.98570 |
| 25 | $31.78441 | $794.61025 |
| 50 | $30.61492 | $1530.74600 |
| 100 | $29.48823 | $2948.82300 |
